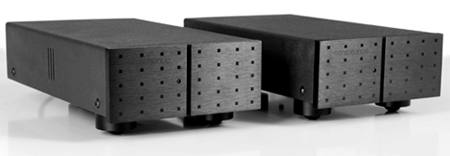

PM-7 Solid-State MM/MC Phono Stage


In the PM-7 each preamplifier is independently configurable via a series of DIP switches that control gain and resistance. An additional DIP switch acts as a "rumble filter" to allow you to limit low-frequency response to 2Hz or 20Hz. Three DIP switches allow loading to be adjusted from 24 ohms to 1k ohm for moving-coil (MC) cartridges; and, for moving-magnet (MM) types, 47k ohms in unbalanced mode. There are switch positions for values of 24,130,150, 1k, and 47k ohms.
Capacitance adjustment for M Ms is limited: 100 pF. A Three-switch DIP-switch array offers gains of 80, 150, 775, 850, 1300, 1400, 1900, 2000 times.

The heart of the PM-7 is a super-quiet analog device microphone preamp based on op-amps. After the adjustable linear gain stage, the signal passes through a passive low-pass RIAA filter and the low-frequency cutoff switch, followed by active RIAA equalization. The low-impedance unbalanced signal can then be output directly.

Specification:



CONTROL FUNCTIONS: Power On/Off ,Switch for Gain and Impedance
HARMONIC DISTORTION (for 2V RMS at output): 0.001%
INPUT INTERFACES: 1 group (RCA)
OUTPUT INTERFACES: 1 group (RCA)
GROUNDING INTERFACES: 1 group
SIGNAL/NOISE: 96dB
CONSUMPTION:20watt
