Calaf MKII

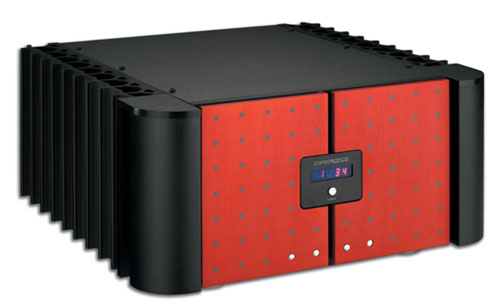

Color Option

Calaf MKII, there is very little headroom available beyond dynamic conditions under for the Calaf. Massive toroidal transformer with independent secondary windings and a bank of eight 10,000uF electrolytic reservoir capacitors for each channel's main power supply. There are also independent preamplifier sections for each cannel and both of these have their own power supplies. Both left and right channels are built as mono power amplifiers, each with seven pairs of high-current transistors mounted onto a thick copper bus bar. This is bolted onto the extruded heat sink that's visible on either side of the amplifier.

Combined with the advantage of class AB and the class A technology, the Cool Class A technology actually achieved the same linear sound performance but without the normal need of a big electrical current, as Class A does.

Calaf MKII is the perfect partner for Consonance's Turandot CD player.

Features:

- 200 watt output power, LED display equipped
- Relay switched input source selector
- Digitally controlled active preamp stage
- Cool Class A technology applied in amplifier stage

Calaf MKII Integrated Amplifier

Specifications:
Power output : 200W + 200W at 8 Ohms Dual Mono
Minimum load : 2 ohms speakers can be connected.
CH Sources : 5 remote controllable inputs switched by gold plated relays
DIRECT : Preamplifier output
CH Terminals : Gold plated Phono/RCA unbalanced and gold plated XLR balanced
Frequency response : Less than +/- 0.1 dB deviation 20Hz-80kHz
Phase response : Less than 2 degrees deviation 20Hz-80kHz
Signal-to-noise ratio : More than 95dB
Crosstalk : Less than -100dB
Distortion : Less than 0.015% @ 100W 8 0hms
Damping factor : More than 1000
Remote Control : RC-5 compatible IR system 36kHz modulation
Dimensions : 20cm x 45cm x 45cm (HxWxD), 45kg shipment weight
