The Reference 40 is a MM and MC stand-alone phono amplifier. It features an external power transformer, power supply with tube rectification, Amorphous core MC step-up transformer and a point-to-point wiring with layout for the lowest noise. CCS (constant current source) on the output stage lowers output impedance and gives enough drive for a TVC.
SPECIFICATION:
Cyber-40
CONTROL FUNCTIONS: Power On/Off , Switch MM / MC and Switch High / Low
HARMONIC DISTORTION (for 2V RMS at output): 0.01%
INPUT IMPEDANCE: 47k ( MM ), 5 /40 ohms ( MC )
INPUT INTERFACES: 1 group (RCA)
OUTPUT INTERFACES: 1 group (RCA)
GROUNDING INTERFACES: 1 group
SIGNAL/NOISE: 80dB ( MM ), 70dB ( MC )
CONSUMPTION: 10watt
VACUUM TUBE: 12AX7 x 2, EZ80 x1
DIMENSIONS: 440 (L) x 320(W)x100 (H)mm
WEIGHT: 15 kg (packed)

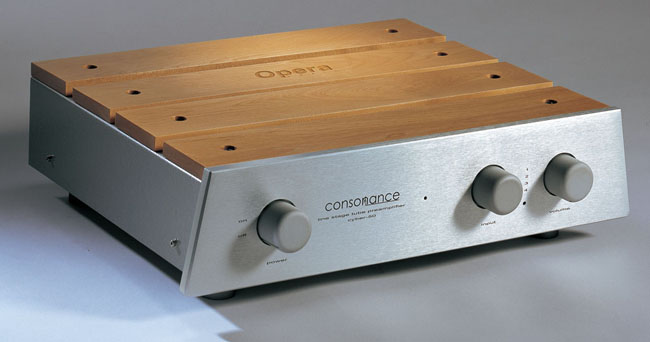

Cyber-50
CONTROL FUNCTIONS: Volume left / right, Input Select,
Power On/Off
HARMONIC DISTORMS (for 2V RMS at output): 0.05%(70Hz-7kHz 4:1)
FREQUENCY RESPONSE: (at -1dB) 3Hz-150kHz
INPUT IMPEDANCE: 100k ohms
INPUT INTERFACES: 4 groups (RCA)
OUTPUT INTERFACES: 2 group (RCA)
SIGNAL/NOISE: 105dB
GAIN at 1kHz: 20dB
CONSUMPTION: 40watt
NEGATIVE FEEDBACK: None
VACUUM TUBE: ECC82 x 2, EZ80 x1
DIMENSIONS: 440(L) x 320(W) x 110(H) mm
WEIGHT: 12kg
CYBER—40 |
|
CYBER—50 |
|
