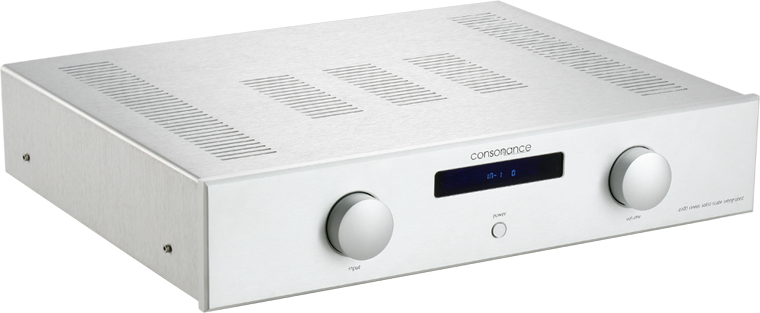

A100 Linear Solid-state Integrated Amplifier

A100 Linear is the perfect partner for Consonance's CD120 Linear CD player and CD120 CD player.
Specifications:
Power Output
80W + 80W at 8 Ohms
Minimum load
4 ohms speakers can be connected
Input Sources
5 selectable inputs switched by gold plated relays
Input Terminals
Gold plated Phono/RCA unbalanced
Output Terminals
One set of gold plated speaker terminals each channel
Line level Outputs
Gold plated Phono/RCA unbalanced pre out
Frequency response
-0.5 dB deviation 2Hz-100kHz
Phase response
Less than 2 degrees deviation 2Hz-100kHz
Signal-to-noise ratio
More than 95dB
Input Sensitivity
500mV
Distortion
Less than 0.02% ( 20W 8 0hms)
Inter-modulation
Less than 0.01% (19kHz + 20kHz)
Remote Control
RC-5 compatible IR system 36kHz modulation
Dimensions / Weight
8cm x 43cm x 29cm (HxWxD) / 10kg
color option
