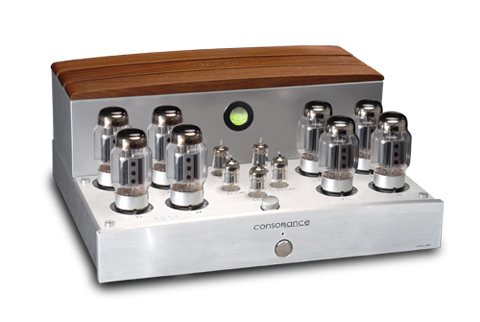

Cyber-880 Stereo Power amplifier



Cyber880 is an extremely potent amplifier with power, superb definition, and great control. Using eight beam power output tubes and a low-mu octal driver, this amplifier possesses an uncanny ability to reveal every nuance in a recording, while preserve the emotion and feel necessary for a truly musical performance. In addition to finesse, it has great power, impact, control, and a low electrical noise floor. This remarkable overall character makes it suitable for use with speakers ranging from high efficiency to the most difficult and demanding.

he aluminum front panel and top cover are finished in hand rubbed silver metalic lacquer, with bias meter and tube adjustors that make it easy to maintain and optimize. Output matching taps are provided for 4, and 8 ohm speakers.



Specification:

CONTROL FUNCTIONS: Power On/Off
POWER OUTPUT: 100 watt x 2, RMS 1kHz ( Ultra-linear )
TOTAL HARMONIC DISTORTION: less than 1%( 50watt, 1kHz )
FREQUENCY RESPONSE: ( -3dB points at 50 watt ) 6Hz-80kHz
INPUT SENSITIVITY: 750mV
INPUT IMPEDANCE: 100k ohms
OUTPUT IMPEDANCE: 4, 8 ohms. ( User selectable )
SIGNAL/NOISE: 90dB
CONSUMPTION: 300watt x 2
INPUT INTERFACES: 1 group ( RCA )
OVERALL NEGATIVE FEEDBACK: Little
VACUUM TUBE: 6550 x 8, 5687x 2, ECC82 x3
DIMENSIONS: 450 (L) x430 (W) x190(H)mm
WEIGHT: 35kg
