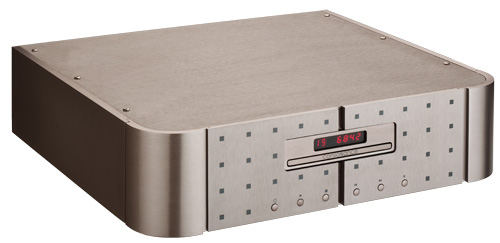

Orfeo
Color Option




Features:
- Linear technology applied in DAC stage, sampling frequency selected manually from 44.1kH to 88.2kH by remote.
- 4 pieces Philips TDA1543 chip working in parallel for lower output essential impedance and higher DAC precision.
- Heavier chassis, LED display, better power supply and components bring more detailed care to the sound.
- No smearing effect caused by digital filter, superb transient response without any over-shooting in sound.

Linear technology (applied to CDplayer):
-Non-oversampling, no digital filter
-J-FET/Transisters filter, no op-amp at all
-Passive I/V conversion In progression
-Short pass length, less number of parts

Specifications:

DAC resolution 16bit TDA1543X4
0dBFS signal output 2.35V RMS
Output Terminals Gold plated RCA unbalanced
Frequency response Less than +/- 0.5 dB deviation 20Hz-20kHz
Signal-to-noise ratio More than 100dB
Crosstalk Less than -100dB
Distortion (RCA) Less than 0.12 %
Remote Control Philips RC-5 compatible IR system 36kHz modulation frequency
Dimensions / Weight : 11cm x 45cm x 40cm (HxWxD) / 18kg
