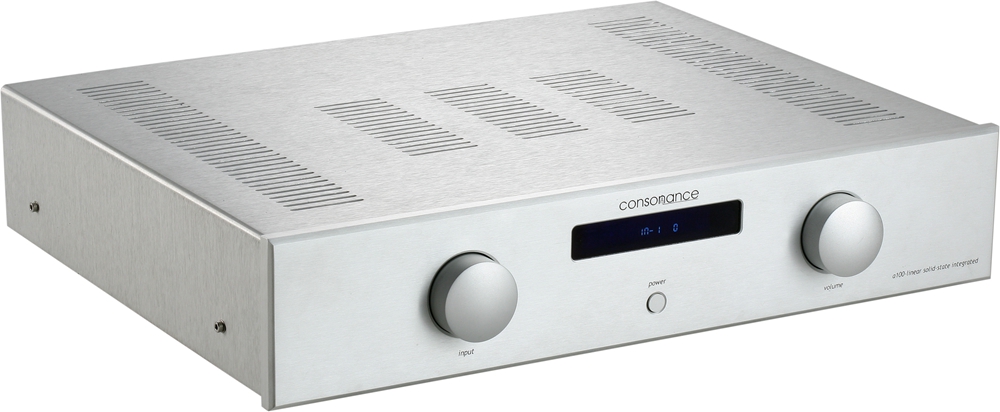

| A100 Linear is the perfect partner for Consonance's CD120 Linear CD player and CD120 CD player. | |||||||||||||||||||||||||||||||||||||||||||||
Specification |
|||||||||||||||||||||||||||||||||||||||||||||
| Power Output: 80W + 80W at 8 Ohms Minimum load: 4 ohms speakers can be connected Input Sources: 5 selectable inputs switched by gold plated relays Input Terminals: Gold plated Phono/RCA unbalanced Output Terminals: One set of gold plated speaker terminals each channel Line level Outputs: Gold plated Phono/RCA unbalanced pre out Frequency response: -0.5 dB deviation 2Hz-100kHz Phase response: Less than 2 degrees deviation 2Hz-100kHz Signal-to-noise ratio: More than 95dB Input Sensitivity: 500mV Distortion: Less than 0.02% ( 20W 8 0hms) Inter-modulation: Less than 0.01% (19kHz + 20kHz) Remote Control: RC-5 compatible IR system 36kHz modulation Dimensions / Weight: 8cm x 43cm x 29cm (HxWxD) / 10kg |
|||||||||||||||||||||||||||||||||||||||||||||
