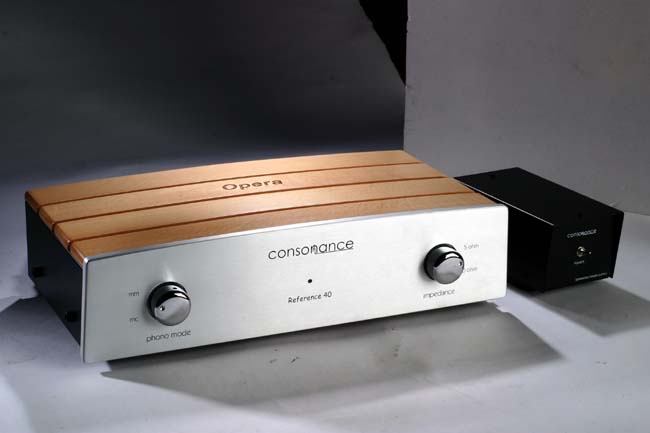

Reference 40 Tube MM/MC Phono Stage |
|
Tonearm |
|
|
| |
Turntable |
|
|
|
|
|
|
| |
Phono stage |
|
|
|
|
|
| |
|
|
The Reference 40 MM and MC tube phono amplifier features an external power transformer, power supply with tube rectification, Amorphous core MC step-up transformer and a point-to-point wiring with layout for the lowest noise. |
| |
Specification |
Control Functions: Power On/Off, Switch MM / MC and Switch High / Low
Harmonic Distortion: 0.01% (for 2V RMS at output)
Input Impedance: 47k ohms(MM), 5 ohm~ 400 ohm(MC)
Input Gain: 40dB (MM ) / 66 dB ( MC, 10 times)/ 57dB(MC, 5 times)
Input Interfaces: 1 group (RCA)
Output Interfaces: 1 group (RCA)
Grounding Interfaces: 1 group
Signal/Noise: 80dB(MM), 70dB(MC)
Consumption: 10watt
Vacuum Tube: 12AX7 x 2, EZ80 x1
Dimensions: 440(L) x260(W) x100(H)mm
Weight: 15kg (packed) |
| |
