Linear1 25th anniversary Tube preamplifier | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
 |
|||||||||||||||||||||||||
 |
||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||

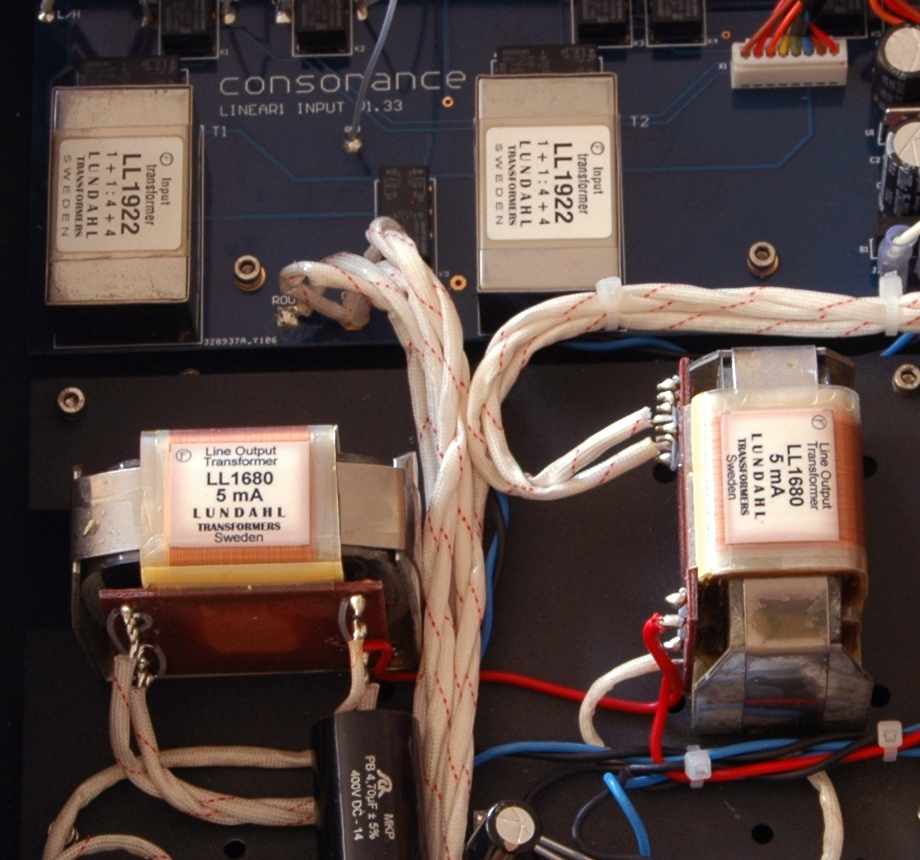

Featuring silver wiring, true balance inputs and outputs utilising 2X101D triodes with no global negative feedback. Constructed using high quality Swedish manufactured "LUNDAHL" input and output transformers. 2A3 and 6SL7 tubes for rectification and regulation with large Solen MKP metallized polypropylene capacitor for filtering, providing a stable, pure and fast power suppl for Linear1 25th anniversary.  Remote control available. |
||||||||||||||||||||||||||
Specification |
||||||||||||||||||||||||||
| Harmonic Distortion (for 2V RMS at output): less than 1% Frequency Response: (at -1dB) 5Hz -60kHz(Gain=9.5dB), 5Hz -40kHz (Gain=15.5dB) Input Impedance: 600 ohms Signal noise: 90dB Gain at 1kHz: 9.5dB and 15.5dB Consumption: 60watt Negative Feedback: None Vacuum Tube: 2A3x2, 6SL7x1, 101Dx2 Dimensions: 430(L) x 400(W) x 225(H) mm Weight: 25kg |
||||||||||||||||||||||||||
